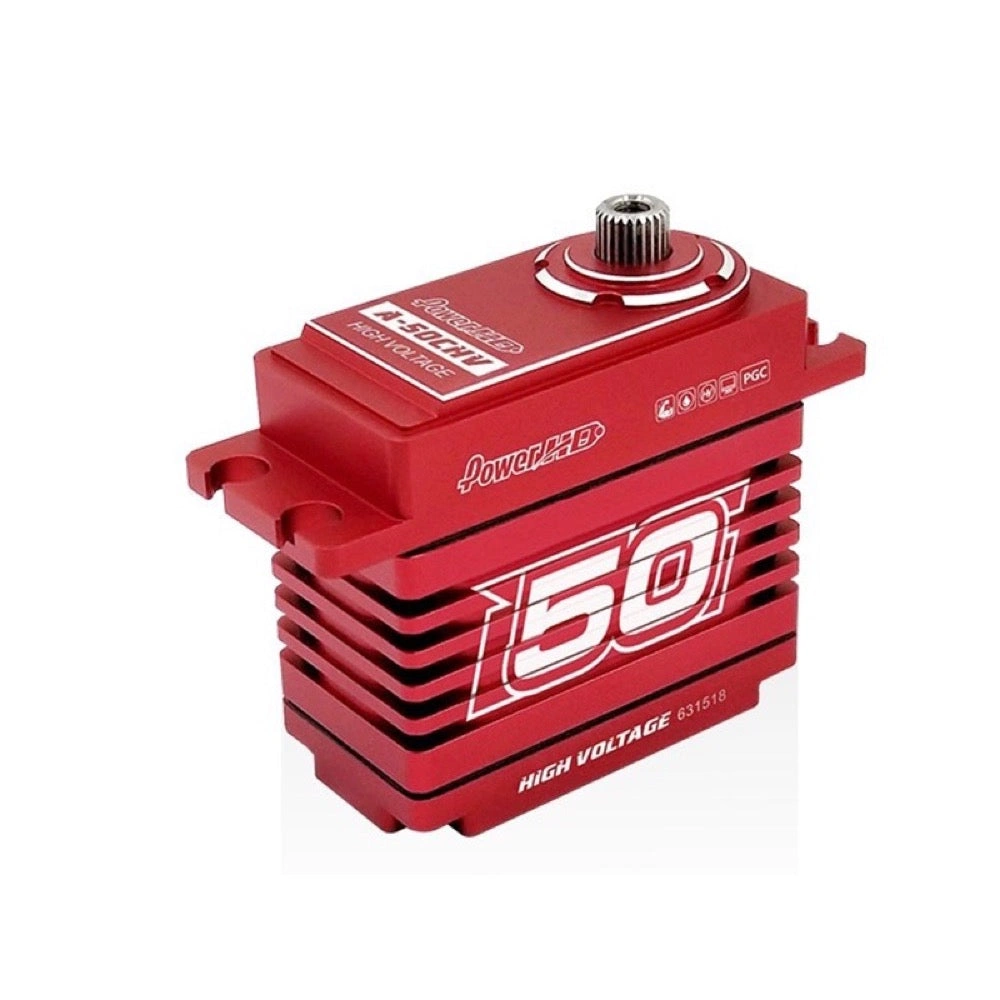

Power HD A-50CHV Standard HV servo Digital Coreless CNC housing Metal gearbox 50.0KG - 0.16sec at 8.4V

The A-50CHV Digital Servo is a high performance servo ideal for applications requiring maximum force and precision. With an impressive torque of 35.0 kg-cm (486.1 oz/in) at 6.0V, 45.0 kg-cm (625.0 oz/in) at 7.4V and 50.0 kg-cm (694.4 oz/in) at 8.4V, it delivers exceptional performance. The speed ranges from 0.19 seconds (6.0V) to 0.16 seconds (8.4V) per 60°.

Specification

• Operating voltage: 6.0 ~ 8.4V DC
• Weight: 80 g (2.82 oz)
• Ball bearing: Double ball bearing
• Motor type: Coreless motor
• Gears: Steel & Aluminum
• Operating temperature: -20℃~60℃
• Frequency: 1520μs / 333Hz
• Dimensions: 40.7 x 20.5 x 38.7 mm (1.60 x 0.81 x 1.52 in)

The A-50CHV offers extreme power and speed, perfect for demanding RC models and professional applications that require absolute reliability.
